EMI Compliance

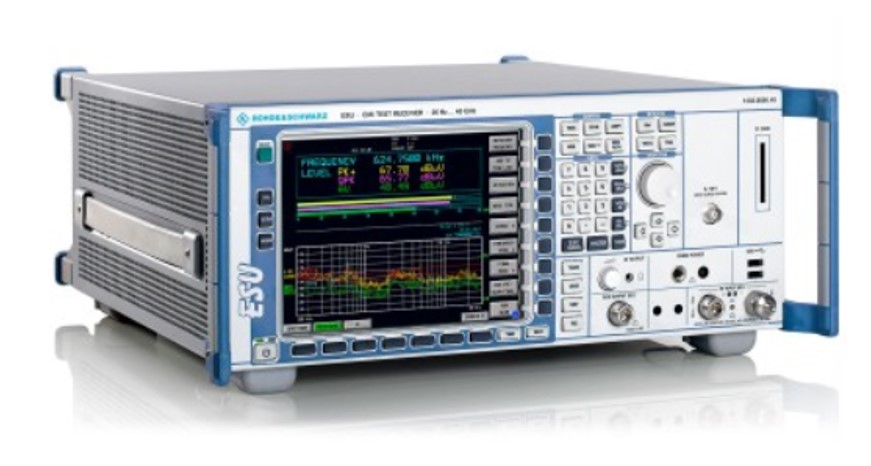

R&S®ESU EMI Test Receiver

EMC and EMI test equipment and systems from Rohde & Schwarz determine the causes and effects of electromagnetic interference. Decades of experience in the field of EMC measurements has made us the world's market leader.

Key Facts

● Combination of CISPR 16-compliant EMI test receiver and high-end spectrum analyzer
● High speed time domain scan (FFT) option
● All commercial and military standards met
Internal preselection (can be switched off in analyzer mode)
● Integrated 20 dB preamplifier up to 3.6 GHz as standard
Receiver mode with parallel IF analysis
● Frequency scan with max. three detectors in parallel (max. 2 million test points/trace)
● Second RF input (max. 1 GHz, pulse-protected)
● Time-domain analysis for evaluation of timing behavior of disturbances (e.g. click-rate analysis)
● Fast and reliable measurements using automatic and interactive test routines
● Integrated report generator
● Optional low-noise preamplifiers up to 8/26.5/40 GHz (R&S®ESU-B24)

Brief Description

The R&S®ESU is a family of CISPR 16-1-1-compliant EMI test receivers that meet all civil and military standards for electromagnetic disturbance measurements. The R&S®ESU-K53 FFT-based time-domain scan option allows users to perform overview measurements up to 1000 times faster than on standard EMI test receivers. The R&S®ESU also features automatic and interactive measurement functions, parallel IF analysis and up to three detectors in parallel including the average detector with meter time constant (CISPR-Average), RMS-Average detector, and APD (amplitude probability distribution to CISPR 16).

alyses in the frequency and time domains can be displayed at the same time. With graphics, results can be read off using vertical and horizontal cursors, and limit lines or stored measurement results can be superimposed on them or compared with them.

Features & Benefits

Full compliance with CISPR 16-1-1 standard
Complex, internal preselection
(can be switched off in analyzer mode)
Integrated 20 dB preamplifier up to 3.6 GHz as standard
Integrated low-noise 30 dB preamplifier up to 40 GHz optional available
Wide choice of detectors incl. CISPR-AVG and CISPR-RMS
CISPR- and MIL-STD-compliant measurement bandwidths
User-programmable scan tables (max. 10 subranges)
Frequency scan with max. three detectors in parallel (max. 2 million test points/trace)

EMS Measurements

EMC and EMI test equipment and systems from Rohde & Schwarz determine the causes and effects of electromagnetic interference. Decades of experience in the field of EMC measurements has made us the world's market leader.

R&S®BBA100 Broadband Amplifier-9 kHz to 1 GHz

Compact, modular amplifier family featuring high reliability

Key Facts

Frequency range from 9 kHz to 1 GHz
Output power up to 1.700 W
100% mismatch tolerance
Suitable for amplitude, frequency, phase and pulse modulation
Software-updatable system controller with versatile control and configuration options
Wide-range AC power supplies
Three-year warranty

Brief Description

The R&S®BBA100 is a family of modular, flexible, state-of-the-art broadband amplifiers. The monitoring and control options allow the setup of very compact systems. R&S®BBA100 "grows" with the requirements. The instrument can be upgraded, thereby providing maximum investment protection and readiness for the future.

The R&S®BBA100 broadband amplifiers are suitable for a variety of applications in EMC environments, communications, research and physical engineering. They are optimally scalable and configurable. Due to their modular design, the amplifiers can be tailored to meet specific requirements with regard to output power and frequency range.

Even in its basic version the 5 HU 19" base unit includes a powerful system controller that controls the installed frequency bands (RF paths), switches the associated components (input switches, preamplifiers, sample port switches, output switches) and monitors the system.

The user interface (both on the instrument and via web browser) allows efficient operation, and various remote control interfaces make it possible to integrate the amplifier into automated environments and systems. Extension units accommodate additional amplifier units, allowing the R&S®BBA100 to be expanded into a system featuring higher power and/or multiple frequency bands.

Versatile remote control options

Many interfaces Ethernet
Optical Ethernet
GPIB
USB

Integration into the R&S®EMC32 measurement software

Advanced user interface

New in amplifiers: real graphical user prompting
Fully graphics-capable display for easy operation directly on the instrument
Local and remote operation via web browser and PC

Unique safety concept

Three independent interlocks
Continued operation while changing test setup

Quick and easy maintenance

Amplifier module replacement by user takes only a few minutes
In-plant repair
Extended warranty for maximum protection of investment

More than an amplifier

The R&S®BBA100 is an evolution on the amplifier market
Three-year warranty
From pre-sale to service – at your doorstep

EMI Precompliance

EMC and EMI test equipment and systems from Rohde & Schwarz determine the causes and effects of electromagnetic interference. Decades of experience in the field of EMC measurements has made us the world's market leader.

R&S®ESRP EMI Test Receiver

Precompliance measurements – fast and straightforward

Key Facts

EMI test receiver and signal/spectrum analyzer combined in one box
Optional preselection and preamplifier (R&S®ESRP-B2)
Resolution bandwidths in line with CISPR, optionally in decade steps from 10 Hz to 1 MHz (R&S®ESRP-B29)
Weighting detectors: max. peak, min. peak, average, RMS, quasi-peak, average with meter time constant, and RMS in line with current CISPR 16-1-1 version
Standard-compliant disturbance measurements for pulsed disturbances with repetition frequencies ≥ 10 Hz (with R&S®ESRP-B2 preselection/preamplifier option)
Very fast FFT-based time domain scan as an option (R&S®ESRP-K53)
Automatic test routines
IF analysis as an option (R&S®ESRP-K56)

Brief Description

The R&S®ESRP EMI test receiver has been designed for diagnostic measurements during development and for precompliance measurements in order to prepare products for final certification testing. It measures electromagnetic disturbances in the frequency range from 10 Hz to 7 GHz, using either conventional stepped frequency scan or an FFT-based time domain scan, a method that significantly speeds up measurements. At the same time, the R&S®ESRP is a full-featured, powerful signal and spectrum analyzer for lab applications. The R&S®ESRP comes with a straightforward menu structure that combines with the intuitive touchscreen to make the test receiver very easy to operate in any mode.

The R&S®ESRP EMI test receiver uses an FFT-based time domain scan to carry out EMI measurements that took hours in the past in just a fraction of this time. This considerably cuts time and cost in product development and in preparing the product for final certification. An optional preselection function prevents overloading of the frontend and ensures reproducible results. The R&S®ESRP comes with tried-and-tested functions such as IF analysis for displaying the spectrum around disturbance signals, or spectrogram display in the analyzer mode, to help users analyze disturbance signals. The neatly organized menu structure makes it easy to navigate to a desired function or setting.

The instrument can simultaneously display up to six different traces on its 21 cm (8.4") touchscreen for fast, effective result analysis. Featuring compact dimensions, low weight, an optional ruggedized housing and optional DC power supply, the R&S®ESRP is perfectly suited also for mobile applications.

Features & Benefits

Disturbance measurements in line with commercial standards

Precompliance measurements
EMI measurements in spectrum analyzer mode

FFT-based time domain scan speeds up measurements

Significant increase in measurement speed compared with conventional method
Parallel measurement of conducted disturbance signal levels throughout CISPR band B

Powerful measurement and analysis functions

Automatic test sequences with preview measurement, data reduction and final measurement
IF analysis function for displaying the spectrum around disturbance signals
Simultaneous display of up to six traces and four bargraphs
Preset antenna factors (transducers) and user-created transducer sets
EMI limit line library for commercial standards, with convenient editor

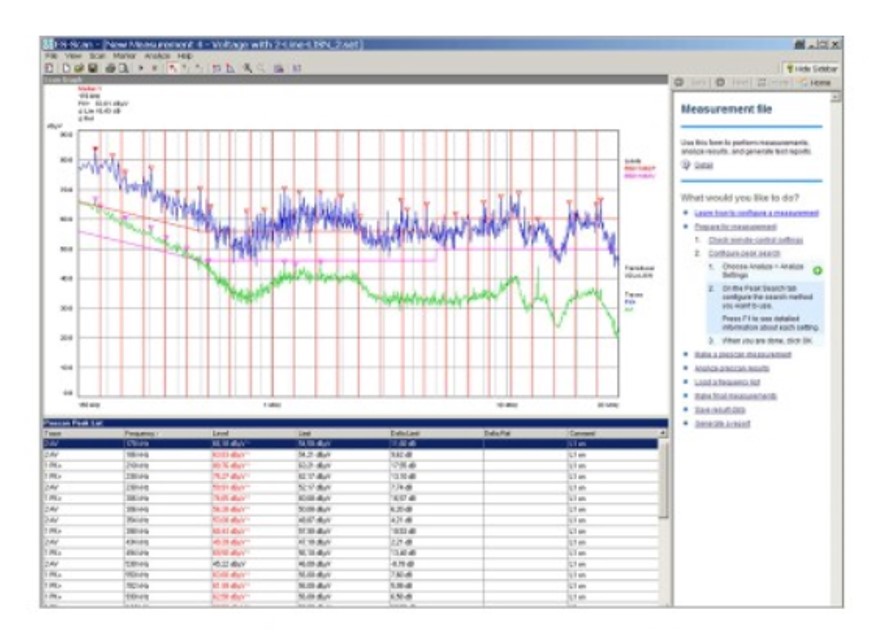

Remotely controlled measurements and automated EMI test routines using R&S®ES-SCAN and R&S®EMC32 EMC application software
Extensive analysis capabilities for general laboratory applications
Tracking generator for scalar network analysis (option)

Convenient operation, straightforward display

Touchscreen-based user interface with undo/redo functions
Straightforward scan table
Integrated online help
Storage of results and instrument settings to internal or external media
Removable hard disk drive (HDD) to keep test data confidential
Remote control via GPIB or LAN
Drivers for LabView, LabWindows/CVI, VXI Plug & Play
Free-of-charge firmware updates – always in step with new developments

Robust and compact, ideal also for mobile use

DC supply for field use, optionally with external battery pack and/or ruggedized housing
Removable solid state drive (SSD) for high vibration and shock loading
Compact design

EMF Measurements

EMC and EMI test equipment and systems from Rohde & Schwarz determine the causes and effects of electromagnetic interference. Decades of experience in the field of EMC measurements has made us the world's market leader.

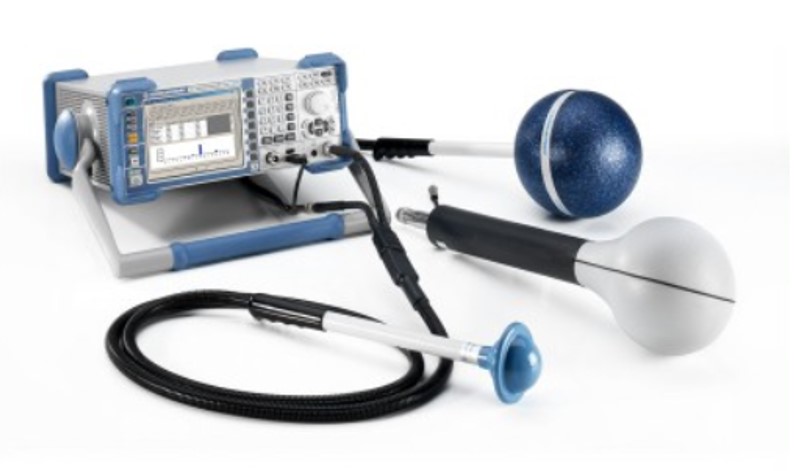

R&S®TS-EMF EMF Measurement System

Easy, frequency-selective measurement of EMF emissions

Key Facts

Automated EMF measurements
Precise measurements of even complex scenarios and RF signals
Wide frequency range from 9 kHz to 6 GHz using isotropic antennas
Isotropic antenna detects fields independent of direction and polarization
Combined use possible with various Rohde & Schwarz spectrum analyzers and test receivers

Brief Description

In combination with Rohde & Schwarz spectrum analyzers, the R&S®TS-EMF measurement system detects high-frequency electromagnetic fields in the environment (EMF). The isotropic antenna, together with the software, which has been specifically designed for EMF measurements, allows simple and precise evaluation of total and individual emissions on-site.

Measuring EMF emissions in line with national and international standards provides a basis for ensuring that transmitter systems comply with the applicable limits and for communicating this to the general public. The key criterion is a precise, easy-to-make on-site measurement.

Features & Benefits

The R&S®TS-EMF measurement system supports users by providing automated test sequences, including preconfigured measurement packets. The isotropic antenna detects fields independent of their direction and polarization. A wide range of Rohde & Schwarz spectrum analyzers and test receivers is available for performing such measurements. In particular, the compact one-box solution with the R&S®FSL spectrum analyzer allows measurements to be performed even in locations that are difficult to access.

Safety based on exact measurements for reproducible and reliable results

Evaluation of total emissions, individual radio services or individual frequencies
Measurements in line with all common EMF standards and measurement methods
Correct evaluation even of complex scenarios or RF signals
Excellent reproducibility using automated measurements

Efficient on-site measurements

Fast, efficient measurements thanks to predefined test routines
On-site interpretation of results using integrated report generation
Easy adaptation to local conditions
Versatile use due to the compact one-box solution with the R&S®FSL spectrum analyzer

Suitable for a wide range of applications

Investigation of specific problems or radio signals by directly setting individual measurement parameters
Additional manual measurements using a full-fledged spectrum analyzer
Optional storage of raw measurement data for further in-depth result evaluation
Precise extrapolation for WCDMA and LTE signals using demodulation

Future-ready

Coverage of the complete frequency range from 9 kHz to 6 GHz, extendable up to 40 GHz, using additional antennas
Measurements of advanced radio services with wide bandwidths and high crest factors

EMC Accessories

EMC and EMI test equipment and systems from Rohde & Schwarz determine the causes and effects of electromagnetic interference. Decades of experience in the field of EMC measurements has made us the world's market leader.
R&S®ENV216 Two-Line V-Network

For disturbance voltage measurements on single-phase EUTs

Key Facts

Frequency range 9 kHz to 30 MHz
Power-handling capacity up to 16 A, constant current (country-specific)
Simulated impedance (50 μH + 5 Ω) || 50 Ω in line with CISPR 16-1-2 Amd. 2:2006
V-network in line with CISPR, EN, VDE, ANSI, FCC Part 15 and MIL-STD-461 D, E and F
Calibrated in line with CISPR 16-1-2 and ANSI C63.4

Brief Description

The R&S®ENV216 two-line V-network meets the requirements of CISPR 16-1-2, EN 55016-1-2, VDE 0876 and ANSI C63.4 for V-networks with a simulated impedance of (50 μH + 5 Ω ) || 50 Ω in the frequency range 9 kHz to 30 MHz. A female connector with protective earth contacts is provided for connecting the EUT. Various models with country-specific connector systems are available.

Features & Benefits

Air-core design and artificial hand

The R&S®ENV216 two-line V-network is based on air-core inductances and contains an artificial hand.

Switch-selectable highpass filter of 150 kHz

To prevent the measuring receiver from being overdriven by low-frequency spectra of high level, a 150 kHz highpass filter can be cut in.

Built-in 10 dB attenuator pad

To ensure standard impedance irrespective of the receiver input attenuation, the R&S®ENV216 is equipped with a 10 dB attenuator pad.

Built-in pulse limiter (can be switched off)

A built-in pulse limiter which can be switched off protects the receiver input.
Remote control with TTL levels (compatible with Rohde & Schwarz measuring receivers)

TTL control inputs that can be driven by controllers and Rohde & Schwarz measuring receivers are provided for remote control in automatic test systems (phase selection and activation of highpass filter). Optocouplers prevent pick-up of external disturbance

R&S®ENY21 Coupling Network

For radio disturbance and immunity measurements on unshielded, symmetrical telecommunications ports

Key Facts

Four-wire and two-wire networks
Radio disturbance measurements in line with CISPR 22: 2005 and EN 55022: 2006 (150 kHz to 30 MHz)
Immunity measurements in line with CISPR 24 and EN 55024 (150 kHz to 80 MHz)
CISPR 16-1-2 complied with
Adapter sets to meet standardized LCL requirements (55 dB and 65 dB) and to accommodate various telecommunications interfaces
High transmission bandwidth for wanted signal (100 MHz)

Brief Description

The R&S®ENY21 and R&S®ENY41 coupling networks have been designed to measure the asymmetrical (common- mode) RFI voltage of unshielded, symmetrical telecommunications ports of EUTs. The measurements can be performed in the frequency range from 150 kHz to 30 MHz and are in line with the CISPR 22: 2005 and EN 55022: 2006 product standards.

The R&S®ENY21 and R&S®ENY41 can also be used for immunity measurements of the EUTs. These measurements can be performed in the frequency range from 150 kHz to 80 MHz and are in line with the CISPR 24, EN 55024, and IEC 61000‑4-6 product standards.

The coupling networks are tested and calibrated in line with CISPR 16-1-2. The calibration data supplied refers to a symmetrical impedance of 100 Ω.
