For nearly 80 years, Rohde & Schwarz has stood for quality, precision and innovation in all fields of wireless communications.

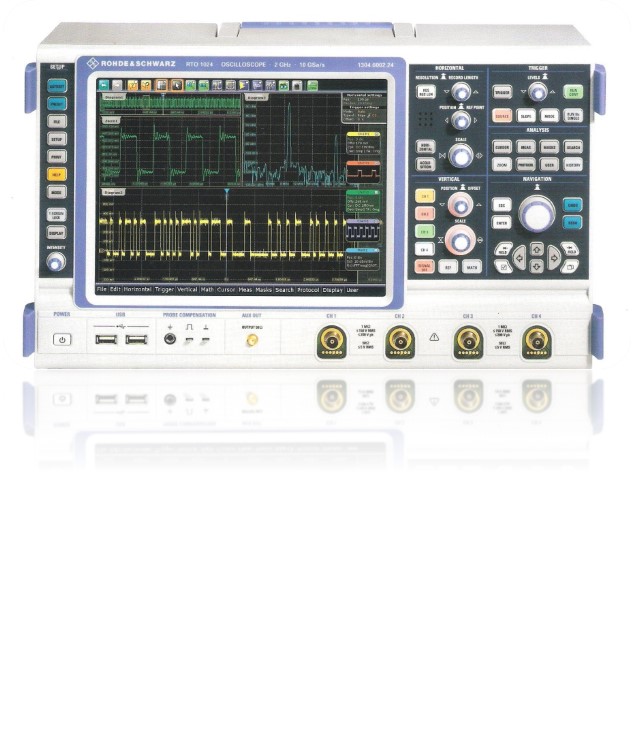

Digital Oscilloscopes

Key Facts

Welcome to the future
The R&S®RTO oscilloscopes combine excellent signal fidelity, high acquisition rate and the world’s first realtime digital trigger system with a compact device format in the 600 MHz to 4 GHz class. They offer hardware-accelerated measurement and analysis functions.

Find signal faults fast
Hardware-accelerated analysis
Highly accurate digital trigger system
New ease of operation
Convincing accuracy
Logic analysis with MSO option

Benefits

Find signal faults fast

One million waveforms per second: fault finding without guesswork
High acquisition rates without limitation of functionality
Fast error analysis with the history view function

Hardware-accelerated analysis

High measurement speed, even for complex analysis functions
FFT-based spectrum analysis: powerful and user-friendly
Mask test: quick configuration, reliable results
Sophisticated analysis with up to three simultaneous waveforms per channel

Highly accurate digital trigger system

Precise measurements due to low trigger jitter
High trigger sensitivity at full bandwidth
Adjustable digital filter for the trigger signal

New ease of operation

Get work done quickly with a straightforward menu structure
Color-coded control elements for clear user guidance
Signal icons with drag & drop functionality
Measurement signals always fully visible thanks to semitransparent dialog boxes

Convincing accuracy

Precise measurement due to very low inherent noise
High dynamic range due to single-core A/D converter
Full measurement bandwidth, even for input sensitivity ranges ≤ 10 mV/div
Low gain and offset errors, independent of the temperature
High channel-to-channel isolation prevents crosstalk

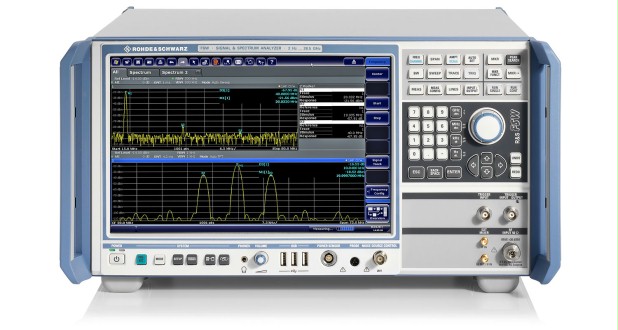

Signal & Spectrum Analyzers

Key Facts

3.6/8/26/43/46/50/67 GHz
TOI > 20 dBm, typ. +25 dBm
1 dB compression: +13 dBm (0 dB RF attenuation)
Displayed average noise level: –152 dBm at 2 GHz; –148 dBm at 26 GHz (1 Hz bandwidth)
Typ. 77 dB ACLR for 3GPP, typ. 84 dB with noise correction
Phase noise: typ. –160 dBc (1 Hz) at 10 MHz carrier offset
Noise correction

Brief Description

The high-performance R&S®FSW signal and spectrum analyzer was developed to meet demanding customer requirements. Offering low phase noise, wide analysis bandwidth and straightforward and intuitive operation, the analyzer makes measurements fast and easy.

Vector Signal Generator

Key Facts

For all your needs
Frequency range from 100 kHz to 3 GHz or 6 GHz
Optional second RF path with 100 kHz up to 3 GHz or 6 GHz
Versatile configuration: from single-path vector signal generator to multichannel MIMO receiver tester
Ideal for MIMO, MSR or LTE-Advanced applications thanks to up to eight signal sources and up to 16 fading channels
Modular architecture for optimal adaptation to the application at hand

Simplify your setup
Easy generation of complex signals
Max. eight baseband generators on two internal baseband modules with realtime coder and ARB
Internal digital adding of baseband signals, even with frequency and level offset
Support of all important digital standards such as LTE, LTE- Advanced, 3GPP FDD/HSPA/HSPA+, GSM/EDGE/ EDGE Evolution, TD-SCDMA, CDMA2000®/1xEV-DO, WLAN IEEE 802.11a/b/g/n/ac
No separate PC software required for digital standards
LTE and 3GPP test case wizards for easy base station conformance testing in line with 3GPP TS 25.141 or 3GPP TS 36.141

Bring reality to your lab
Optional integrated fading section for channel emulation with up to 160 MHz bandwidth
All important fading scenarios available as presets
Installation of up to four fading modules, providing as many as 16 ”logical“ faders
Implementation of all key MIMO fading scenarios such as 2x2, 3x3, 4x4 and 8x2 using a single instrument
Support of complex applications such as dual-carrier HSPA, LTE carrier aggregation and multi-user LTE
Connection of R&S®SGS100A signal generator modules to provide up to four RF paths
Phase coherence option, e.g. for beamforming applications

Make your device even better
Excellent signal quality for high accuracy in spectral and modulation measurements
I/Q modulator with up to 2 GHz RF modulation bandwidth
160 MHz I/Q modulation bandwidth (in RF) with internal baseband
Exceptional modulation quality, e.g. –49 dB EVM (meas.) with 160 MHz wide WLAN IEEE 802.11ac signals
High-end pulse modulation with on/off ratio > 80 dB and rise/fall time < 10 ns
Excellent spectral purity (SSB phase noise –139 dBc (typ.) at 1 GHz, 20 kHz offset)

Speed up your development
Intuitive operating concept and clever help functions for quick success
Block diagram as key operating element to visualize signal flow
Adaptive GUI for overview of both simple and complex scenarios
Graphical signal monitoring at practically every point in the signal flow
Context-sensitive online help system with complete user documentation
SCPI macro recorder and code generator for generating executable remote control code from manual operating steps (for MATLAB®, CVI, etc.)

Grows with your needs
Customizing of instrument to accommodate virtually every application
Advanced plug-in system for retrofitting baseband modules without instrument recalibration
Software upgrades possible at any time, simple and quick activation via key codes
Firmware updates – keeping pace with the latest developments

Brief Description

The R&S®SMW200A is the vector signal generator for the most demanding applications. As a result of its flexibility, performance and intuitive operation, it is a perfect tool for generating complex, digitally modulated signals of high quality.

The R&S®SMW200A is the ideal generator for digitally modulated signals required for the development of new wideband communications systems, the verification of 3G and 4G base stations or in the aerospace and defense sector.

The I/Q modulation bandwidth of up to 160 MHz with internal baseband satisfies fourth-generation standards (e.g. LTE-Advanced and IEEE 802.11ac), and the R&S®SMW200A is designed to meet future requirements. Its modular scalable architecture allows users to optimize the generator to their applications and to upgrade it as required.

A second RF path can be added, as well as a maximum of two baseband and four fading simulator modules – without compromising on signal quality. As a result, the R&S®SMW200A can create signal scenarios that previously required multiple instruments or could not be implemented at all. From MIMO up to 8x2 to LTE-Advanced carrier aggregation including fading – never before has an instrument offered such high-class signal generation capability.

If more than two RF paths are required, additional R&S®SGS100A signal generator modules can be connected. The intuitive, touchscreen-based operating concept provides the user with an overview of measurements, no matter how complex, and quickly delivers the desired results.

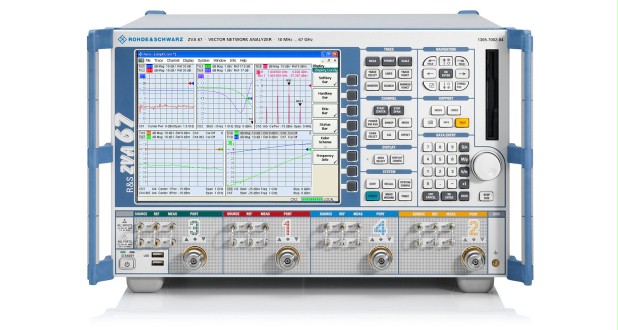

Network analysis

Vector network analysis (VNA) is among the most essential of RF/microwave measurement approaches. As a leading manufacturer of test equipment, Rohde & Schwarz offers a wide range of high-performance network analyzers.

Key Facts

First VNA With four internal sources up to 67 GHz for fast two-tone measurements on amplifiers and mixers
With generation of four phase-coherent signals up to 67 GHz
With IF bandwidths up to 30 MHz for pulsed measurements on amplifiers and mixers up to 110 GHz

Linear and nonlinear amplifier and mixer measurements
Noise figure measurements
Pulse profile measurements with 12.5 ns resolution
True differential measurements for reliable characterization of active devices with balanced ports
High output power typ. > 15 dBm
Wide dynamic range typ. > 140 dB
High measurement speed < 3.5 μs per test point
Wide IF bandwidth: 1/5/30 MHz
Versatile calibration techniques: TOSM, TRL/LRL, TOM, TRM, TNA, UOSM
Automatic calibration units
Phase and group delay measurements on mixers with and without LO access
Frequency range: 300 kHz to 8 GHz (R&S®ZVA8), 10 MHz to 24/40/50/67/110 GHz (R&S®ZVA24/40/50/67/110)

Brief Description

The R&S®ZVA series are high-end VNAs with up to four sources for sophisticated measurements up to 110 GHz. They are an ideal choice for demanding measurements on active and passive components and modules, which require high performance and wide versatility. The frequency range of the high-frequency models can be extended up to 500 GHz.

Instrument concept

The R&S®ZVA contains one source for each pair of ports (67 GHz has one source per port). A special switch arrangement allows parallel signal output, i. e. signals can be output to the DUT via all ports at the same time. In addition, direct generator and receiver access is provided optionally. This concept offers many advantages with regard to measurement speed and functionality.

The above design features make the R&S®ZVA an analyzer of unprecedented performance and functionality, which is especially true for the four-port model. Following are a few highlights:
Use of the second source as an LO for fast mixer measurements
Generation of a swept two-tone signal for fast intermodulation measurements versus frequency or power
True differential measurements on balanced DUTs
Parallel signal output and measurement at the test ports for measuring two or more DUTs simultaneously.
Direct generator / receiver access (option) enabling the following, for example: Loop-in of preamplifiers into generator paths
Loop-in of attenuators into the receiver paths
Connection of external test setups, e.g. power amplifiers, or use of analyzer as a multichannel receiver, e.g. for antenna measurements

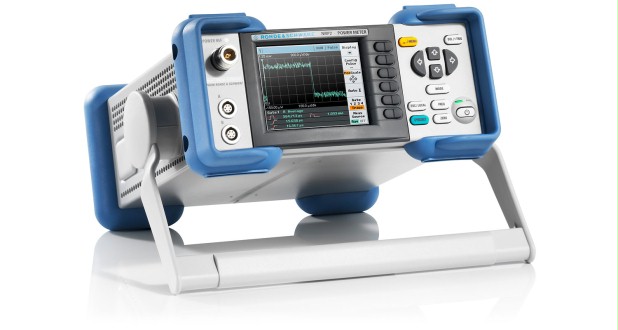

Power Meters & Voltmeters


For decades power meters and volt meters from Rohde & Schwarz stand for highest measurement accuracy and reliability. The wide portfolio of power sensors combined with a flexible connection concept offers a perfect power measurement solution for every user.

Key Facts

Supports all sensor-dependent measurement functions
Expandable to up to four measurement channels
Straightforward numerical and graphical display
Brilliant TFT color display
Optionally integrated 50 MHz/1 mW reference source
Hardware interfaces for remote control and triggering
Emulation of other legacy power meter
User-programmable save/recall locations

Brief Description

The compact, robust R&S®NRP2 base unit with color display supports up to four R&S®NRP-Zxx power sensors and all sensor-dependent measurement functions. Measured values are displayed numerically or graphically, depending on the measurement function. The window-based user interface allows simple, intuitive operation; the base unit can be remotely controlled via Ethernet, GPIB or USB.

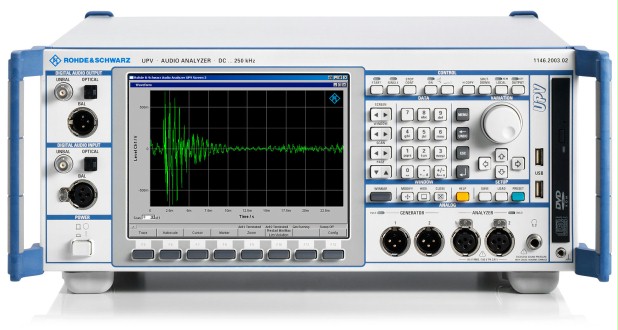

Audio Analyzers

Rohde & Schwarz audio test equipment enjoys an excellent reputation. Versatile audio analyzers and audio switchers cover audio measurements on a large variety of digital and analog interfaces.

Key Facts

Suitable for all interfaces
(analog, digital and combined)
Simultaneous display of multiple measurement functions
Sampling rate up to 400 kHz
User-programmable filters for analyzers and generators
Compact instrument with integrated PC
Slots for future options

Brief Description

Although audio signals are mainly processed digitally nowadays, analog technology will remain a viable alternative that is continuously being enhanced. Therefore, both analog and digital measurements must be performed. The R&S®UPV audio analyzer is designed precisely for this purpose.

The R&S®UPV enables users to perform virtually all measurements that are necessary in the audio world: frequency response measurement, total harmonic distortion (THD) displays, spectral displays, analysis of digital interfaces, and much more. The generator is just as versatile. It can be used to create any conceivable signal from sinewave and noise signals up to multi-sinewave signals.

The R&S®UPV is an all-in-one instrument with an integrated control PC, making it easy to transport. Since the instrument comes factory-ready, it merely needs to be unpacked and switched on before being put into operation. Peripherals are therefore not required. Optional modules and software expansions that can be integrated into the instrument
open up a broad scope of further applications.

The R&S®UPV features an intuitive user interface (Windows XP operating system). The large screen plays a key role, not only for displaying measurement results. All settings are made in panels that contain all interrelated functions and settings. Since the operating philosophy is easy to understand and since analog and digital measurements are performed in a similar manner, users can quickly master instrument operation.

The instrument features scalable graphical windows that can be moved around on the screen as needed, providing all measurement results at a glance. Results can be displayed in realtime for one or both channels and can optionally be expanded to a maximum of 16 channels. Multiple measurement functions/graphics are available simultaneously. For example, analyses in the frequency and time domains can be displayed at the same time. With graphics, results can be read off using vertical and horizontal cursors, and limit lines or stored measurement results can be superimposed on them or compared with them.
