Vertical Video Projector-Non-Contact VTC Series


• Solid framework, large LCD touch screen and advanced QM2.0 software
• High quality optics for crisp and clear image
• Adjustable LED surface and contour illumination
• High resolution industrial CCD camera
• Click zoom lens changeable within the range of 20 - 120x magnification
• Easy to operate user interface
• Extended function of printing, saving and exporting data
• Excel, word or TXT multi-format report output, and DXF input or output
• Excellent repeatability
• Resolution 0.0005mm
• Advanced functionality such as quick measuring of correlative
• Parameters of gear tapers



Measurement Software Quick Measuring 2.0 ~ 4.2 Version
Applications Video measuring machines, measuring microscopes and other vision measuring systems, etc. Modern compact interface Design Introduction:

1.Toolbar
2.Video display window
3.Measuring graphic window
4.Illuminator control column
5.Coordinate display column
6.Measured result display column
7.Measuring tool window
8.Procedure edit window

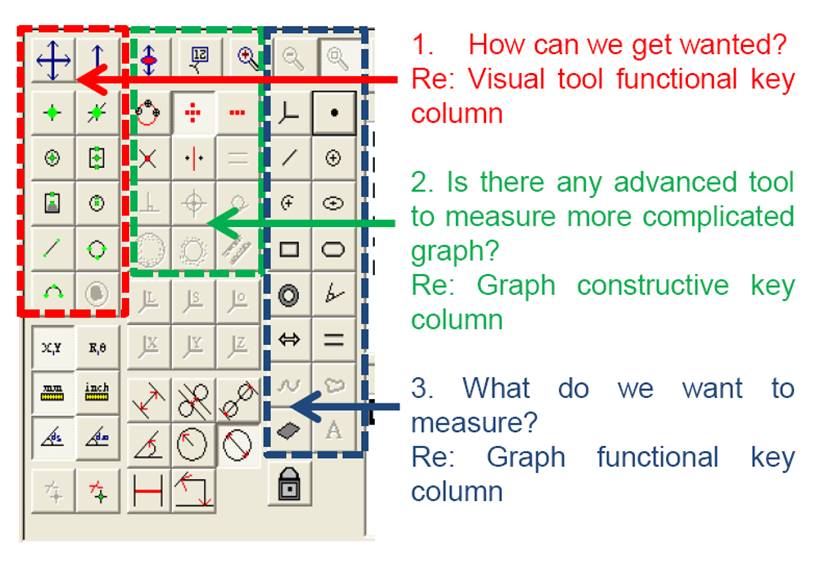

Friendly compact functional key
Graph functional key, graph constructive Functional Key and Visual tool functional key is separated by color and grouped tactical, makes the communication between Operator and instrument quickly and it improves the speed, and friendly of measurement efficiency obviously.


2D non-contact measurement

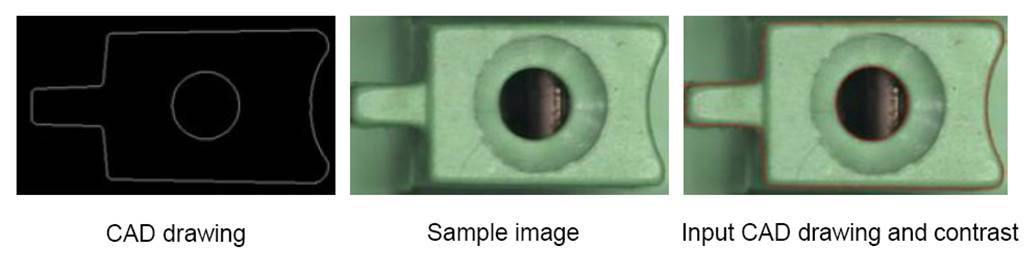

Input CAD file and contrast
1, Click “DXF” import ; 2, Click “Move comparison graph” ; 3, drag mouse and make sure graph and video coincide



4-Division and 48-division ring illumination make measurement clearer and accuracy

USB 5-ring, 8-direction and 48-division LED illumination provide multi-choice of illumination brightness, which makes the measurement of edge-detect and deeper hole easily. Besides, the illumination condition also can be saved simultaneously while programming in order to realize the auto-control of illumination. 4-division LED illumination is Low-version light source for the manual Video measuring machine.



Image auto-focus
Quick Measuring realizes entire auto-focus, which reduces the visual error caused by eye-focus and improves the measuring efficiency and accuracy.



Dimension label function
Quick Measuring is able to label dimension with detail data on actual image freely, which reduces the measuring time and improves efficiency obviously. Now, the label is displayed with distance, angle, radius and diameter according, etc.

Image sharpening and auto-fringe function
Quick Measuring can contrast the image before and after sharpening, and the sharpening make measurement more convenient when check some complicated and uneasy work-pieces. Auto-fringe function makes the whiteness and blackness of sharpened image clearer and edge-detect result accurate.

2.5D Non-contact Optical Height Measurement

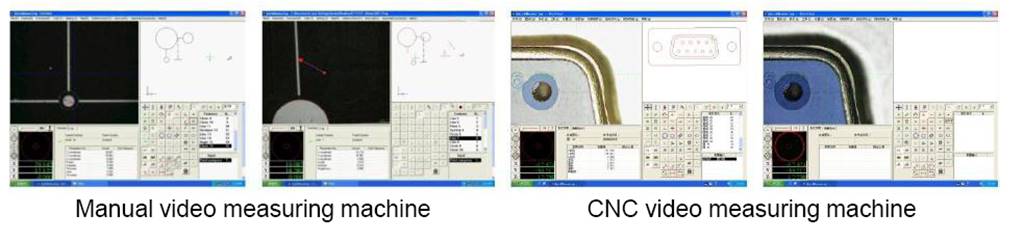

Quick Measuring use auto-focus to achieve accurate height measurement of two plane on manual / CNC Video measuring machine quickly. Through two focusing for different layers of work piece, to obtain height value. Manual Video Measuring Machine operation step:



Auto-focus to achieve accurate height measurement of two plane on manual/ CNC video measuring machine.

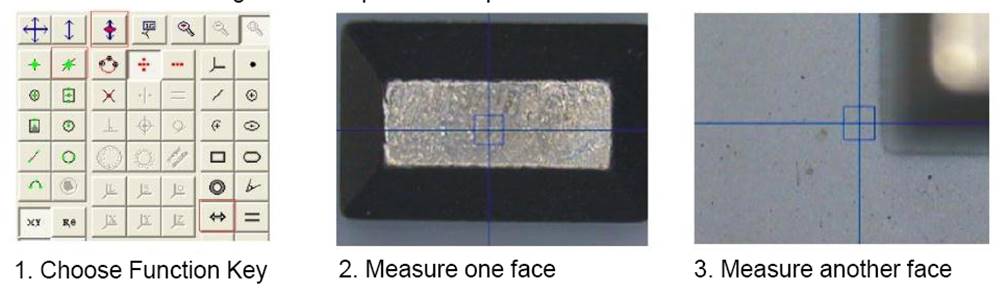

CNC Video Measuring Machine operation step:

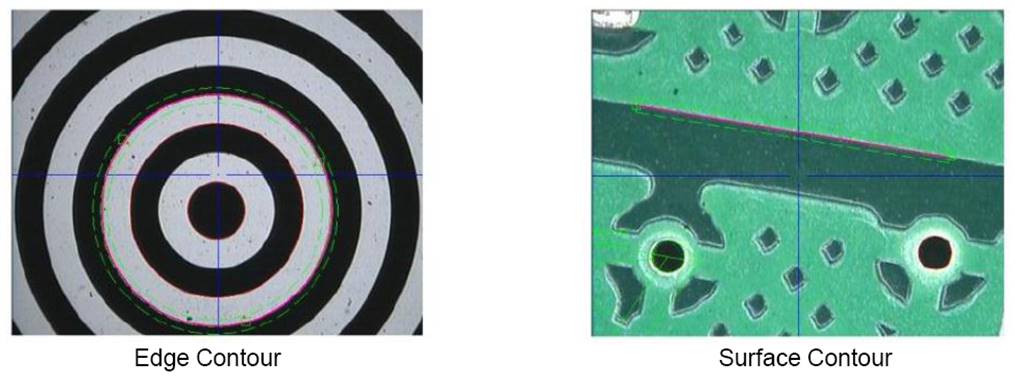

Automatic edge-detecting function
High-speed, accurate and repeatable. While measurements, it can analyse and dispose and dispose the workpiece’s characters and identify workpiece edge automatically.



Map photo & Measurement and map navigation
Quick Measuring can take photos for the workpiece on work-stage, then automatically combines segment into a full map-photo, which can be saved and measured, the operator also can use this map-photo to make navigation. While clicking any position of picture, software will quickly move forward the Appointed zone, which largely improves the efficiency of measurement. Besides, the photo-map also can be input again and labled directly. It is better to use this function on NC or: suggestion CNC machines.



Program simply and directly
Unlike the traditional measurement programming, Quick Measuring adopt training style programming, it can record measurement program which can be carried out at any time (measuring order, illumination setup etc). It is more convenient and quick to measure the same workpiece repeatedly. Step No1. Create a coordinate system; Step No2. Make a program and save the program; Step No3. Input the program and then auto-run.



Multi-magnification Zoom high-resolution CCD Camera
High-quality 0.7-4.5x zoom lens select and magnify complicated parts within the visual wide field easily and sharply. High resolution CCD camera, capture card and monitor ensure the output image without any aberration.


Multi-magnification zoom high resolution CCD camera.

Multi-format output
Measurement results of Quick Measuring can be output in multi-formats, such as TXT, Excel. Quick Measuring also can input and output the DXF file, which let the operator make CAD graphic processing easily.



SPC statistical function column
